Noida has grown into one of North India's most active hubs for healthcare delivery, diagnostics, pharmaceutical manufacturing and life-science research. From multi-speciality hospitals along the Noida–Greater Noida Expressway to diagnostic chains in Sector 62, pharma formulation units in Sector 63 and 67, and university research laboratories in Greater Noida, the demand for dependable steam sterilization is constant.

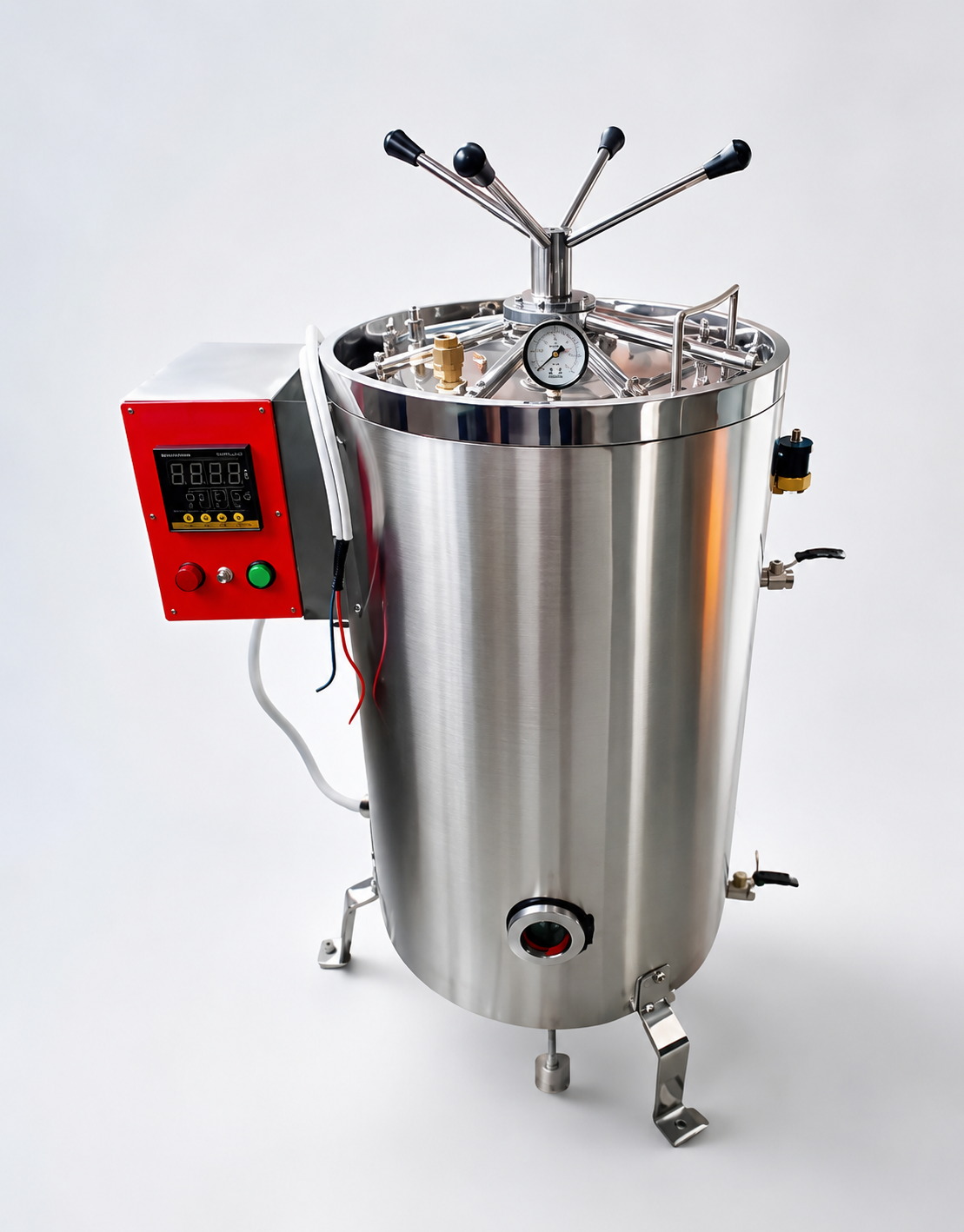

Our vertical autoclaves are built as top-loading pressure vessels using certified SS 304 and SS 316 stainless steel, argon-welded seams and imported safety valves. Every unit is hydro-tested, temperature-mapped and cycle-verified before dispatch so that hospitals, laboratories and production units in Noida receive equipment that performs consistently from the very first cycle.
A vertical autoclave sterilizes by exposing the load to saturated steam under pressure. Because moist heat transfers energy far more efficiently than dry heat, it destroys microorganisms at lower temperatures and in shorter time.
When steam comes into contact with a cooler surface it condenses, releasing latent heat that coagulates microbial proteins and renders bacteria, fungi, viruses and spores non-viable. A controlled vertical autoclave cycle moves through five sequential stages:
Pressure and temperature are directly linked: at roughly 15 PSI water boils at 121°C, while at about 30 PSI it reaches 134°C. The controllers, gauges and safety valves fitted on our vertical autoclaves keep these two parameters locked together so that every cycle in a Noida laboratory or hospital is repeatable and documented.
Different facilities in Noida need different levels of automation, chamber construction and documentation. These are the main configurations available.
A straightforward, budget-friendly unit with one chamber wall. Well suited to small clinics, dental setups and low-volume diagnostic centres in Noida.

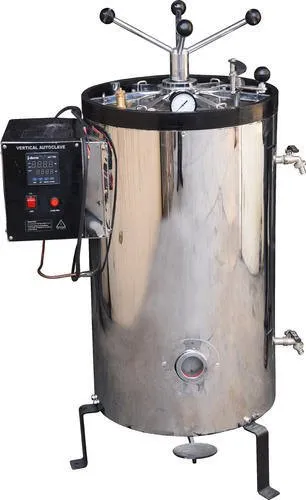

A PUF-insulated outer jacket holds heat inside the chamber, cutting warm-up time and electricity use — a practical choice for busy hospital CSSDs.
Steam inlet, air exhaust and condensate drain are controlled by three separate valves, delivering drier, higher-quality steam for microbiology work.
PLC and HMI touchscreen control with stored programs, alarm history, batch printing and USB export for regulated environments.

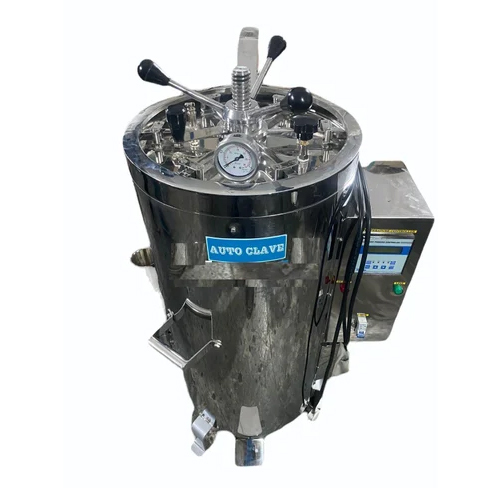

SS 316 contact surfaces with polished internal finish for corrosion resistance and GMP-aligned cleanroom sterilization in Noida's pharma belt.
Non-standard chamber dimensions, higher pressure ratings, alternate voltage supplies or special loading baskets built to your specification.
From compact 20-litre benchtop-style units for clinics to 200-litre validation-ready sterilizers for pharmaceutical production — pick the configuration that fits your load, your floor space and your documentation requirements.
Best Seller
The everyday workhorse for clinics, dental practices and diagnostic laboratories in Noida. Manual lid clamping combined with automatic pressure regulation and a digital temperature display keeps operation simple for small teams.
High Performance

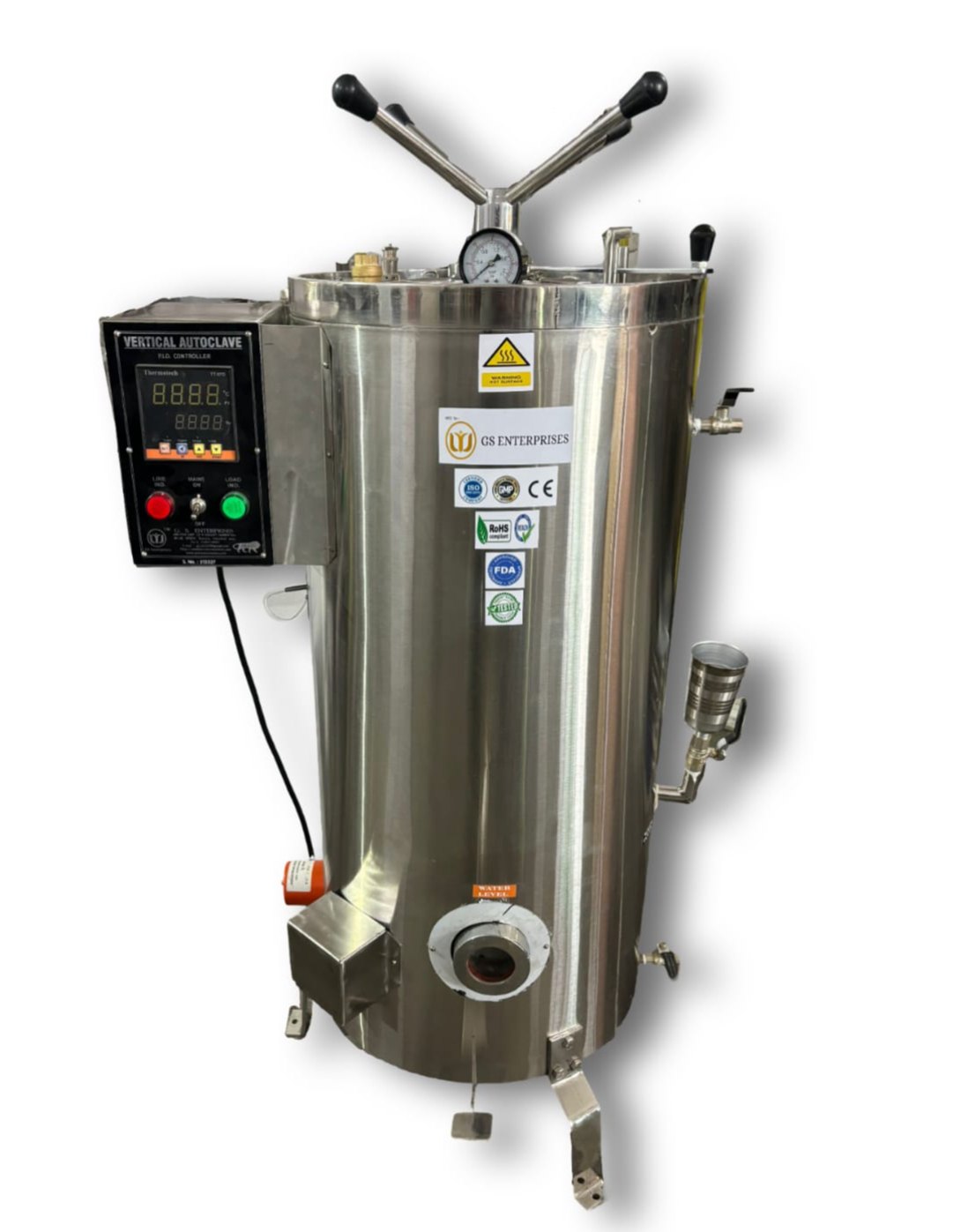

A steam stock sterilizer with independent valves for steam entry, air removal and condensate drainage. Preferred by microbiology and media-preparation laboratories that need consistent steam quality.
Fully Automatic

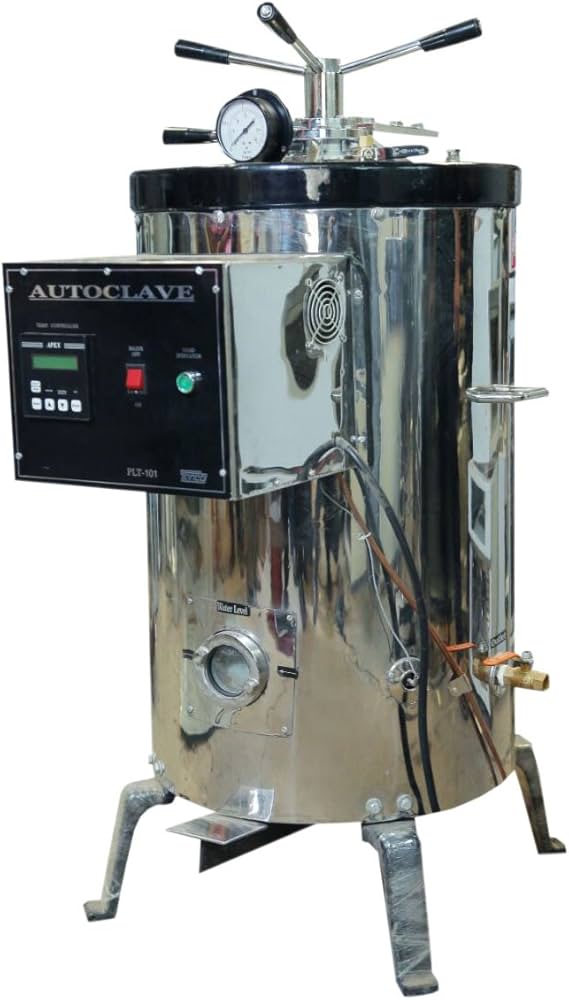

PLC and HMI driven with recipe storage, cycle printing and data logging. Designed for pharmaceutical units and laboratories in Noida that must produce documented evidence for every sterilization batch.
Energy Efficient
The insulated jacket traps steam heat inside the working chamber, shortening warm-up time and reducing power draw — valuable where autoclaves run multiple cycles every day.
Pharma Grade
Built with SS 316 contact parts and a mirror-polished chamber for pharmaceutical, biotech and cleanroom sterilization where corrosion resistance and GMP alignment are non-negotiable.
Custom Built

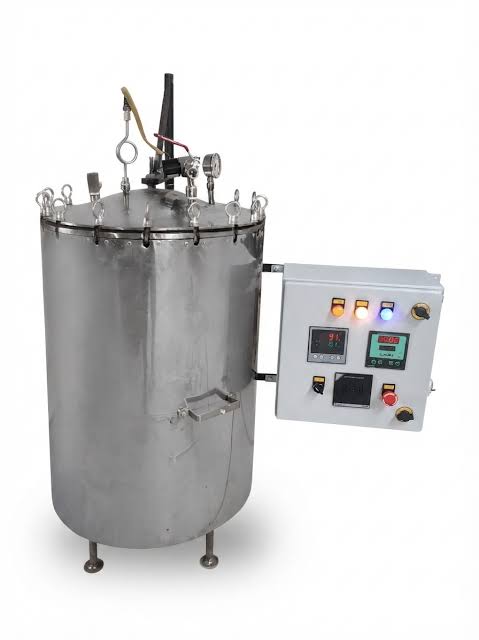

Need a deeper chamber, a higher pressure rating, a special trolley or a three-phase supply configuration? We engineer units around your exact requirement rather than the other way round.
Reliability in a sterilizer comes down to the quality of its individual parts. Here is what goes into every vertical autoclave we supply to Noida.
Each sterilizer is hydro-tested, safety-checked and cycle-validated before it leaves our works — so the unit that reaches your Noida facility is ready to run from day one.
A spring-loaded relief valve, pressure interlock and low-water cut-off work in combination to protect both the operator and the vessel.
The PID controller keeps the chamber at 121°C or 134°C with minimal drift, ensuring the full hold time is achieved at the correct temperature.
Optional PLC control with touchscreen HMI, stored recipes, alarm history, batch printing and USB data export for audit-ready records.
SS 304 or SS 316 pressure vessels with argon-welded joints and a polished interior that resists corrosion and cleans down easily.
Water-level sensing isolates the heating element the moment the water falls below the safe level, preventing costly heater burnout.
The radial locking mechanism cannot be released while the chamber is pressurised, eliminating a common operator hazard.
Insulated double-wall construction and correctly sized heating elements keep electricity and water consumption low over years of daily use.
Front-accessible wiring, standardised spares and a modular heater assembly make routine servicing quick for any engineer in Delhi NCR.
Standard operating parameters for vertical autoclaves supplied across Noida and Greater Noida. Custom ratings, voltages and chamber sizes available on request.
| Parameter | 20 L – 35 L | 50 L – 75 L | 100 L – 200 L |
|---|---|---|---|
| Chamber Material | SS 304 / SS 316 | SS 304 / SS 316 | SS 304 / SS 316 |
| Construction | Single / Double Wall | Double Wall PUF Insulated | Double Wall PUF Insulated |
| Working Pressure | 15–20 PSI | 15–22 PSI | 15–22 PSI |
| Working Temperature | 121°C – 134°C | 121°C – 134°C | 121°C – 134°C |
| Sterilization Hold | 20 – 40 Minutes | 30 – 50 Minutes | 40 – 60 Minutes |
| Control Type | Semi / Fully Automatic | Semi / Fully Automatic | Fully Automatic / PLC |
| Heating Element | 2 kW – 3 kW | 4 kW – 6 kW | 6 kW – 12 kW |
| Power Supply | 220 V / 50 Hz Single Phase | 220 V / 440 V | 440 V / 50 Hz Three Phase |
| Safety Features | Safety Valve, Gauge, Low Water Cut-Off | Triple Valve, Interlock, Low Water Cut-Off | Triple Valve, PLC Alarms, Interlock |
| Warranty | 12 Months | 12 Months | 12 Months |
For clinics, laboratories and small production areas in Noida where floor space is limited but sterilization standards are high, a vertical autoclave is often the most practical answer.
Top-loading design uses far less floor area than a horizontal unit of similar capacity.
Purchase price and installation cost are both lower, which matters for new facilities.
Smaller chamber volume means faster heating and cooling between batches.
Lower chamber volume translates directly into reduced water consumption.
Interlocked radial locking prevents the lid from being opened under pressure.
Straightforward construction and standard parts keep maintenance costs predictable.
Both formats sterilize effectively — the right choice depends on your load volume, available space and whether you need front-loading trolley access.
| Feature | Vertical Autoclave | Horizontal Autoclave |
|---|---|---|
| Loading Direction | Top loading | Front loading |
| Floor Space | Compact footprint | Occupies more floor area |
| Capacity Range | 20 L – 200 L | 50 L – 1000 L+ |
| Initial Cost | Lower | Higher |
| Cycle Time | Faster for small loads | Longer, but handles bulk loads |
| Ideal For | Clinics, diagnostic labs, small hospitals | Large hospitals, pharma production |
| Installation | Simple, minimal site work | Requires more setup and space |
From hospital CSSDs on the Noida Expressway to university research blocks in Greater Noida, these units handle a wide range of sterilization duties.
Sterilizing surgical instruments, OT linen, dressings and reusable medical devices.
Media preparation, glassware sterilization and safe treatment of biohazard waste.
GMP-aligned sterilization of components, containers and cleanroom garments.
Microbiology, biotechnology and life-science research requiring repeatable cycles.
Sterilizing media, sample containers and processing utensils for hygiene testing.
Decontamination of laboratory and clinical waste before disposal as per BMW Rules.
Sterilizing veterinary surgical instruments, trays and animal-care equipment.
Quality-control and testing laboratories in Noida's manufacturing and electronics sectors.
A disciplined eight-stage workflow ensures that each sterilizer supplied to Noida meets the same safety and performance benchmarks.
We record your load type, cycle frequency, chamber size, utility availability and space constraints.
Engineering drawings are prepared for the pressure vessel, piping, controls and safety systems.
Certified SS 304 / SS 316 sheets and plates are checked against mill test certificates.
CNC cutting, rolling and argon welding produce a leak-proof, dimensionally accurate vessel.
Each vessel is pressure-tested at 1.5× working pressure to confirm structural integrity.
Heaters, valves, gauges, controllers and interlocks are fitted and electrically wired.
A live sterilization cycle is run with temperature mapping and safety-trip verification.
Protective packing, delivery to your Noida site, installation and hands-on operator training.
More than a decade of sterilization equipment experience, in-house fabrication and a responsive service network across Delhi NCR.
ISI and CE aligned manufacturing with documented testing and inspection at every stage.
Vessel fabrication, assembly and testing all happen under our own roof — no outsourcing gaps.
Buying straight from the manufacturer removes dealer margins from your quotation.
Short transit times to Noida, Greater Noida and Delhi NCR mean your equipment arrives sooner.
Quick engineer deployment, genuine spares and optional AMC plans to avoid downtime.
Chamber sizes, pressure ratings, baskets and automation levels tailored to your process.
On-site training covering safe operation, cycle selection and preventive maintenance.
Test certificates, operation manuals, IQ/OQ/PQ assistance and warranty papers with every unit.
Answer these eight questions before finalising a model — they determine capacity, cost and how well the unit will fit your daily workflow.
Estimate the volume of instruments, media or garments per cycle to fix the chamber capacity.
SS 304 covers general hospital and lab use; SS 316 is preferable for pharma and corrosive loads.
Semi-automatic suits basic needs; PLC-based control is required for validation and audit trails.
Confirm your protocol needs 121°C at 15 PSI, 134°C at 30 PSI, or both.
Insist on a safety valve, low-water cut-off, pressure interlock and a reliable gauge.
Regulated facilities should confirm IQ/OQ/PQ support and calibration certificates upfront.
Check response time, spare-part availability and AMC terms for your Noida location.
Compare total cost of ownership, not just purchase price — durability and safety matter more.
A short, regular maintenance routine keeps sterilization results consistent and significantly extends the working life of your autoclave.
⚠️ Safety Reminder: Never attempt to open the autoclave while the pressure gauge shows a reading. Follow the operating manual at all times and ensure every operator is trained before handling the equipment.
Our vertical autoclaves are built and tested against recognised national and international benchmarks for medical sterilization equipment.
Manufactured in line with Indian Standards for steam sterilizers, covering design and safety.
Compliance with European health, safety and environmental requirements for global acceptance.
Quality management practices consistent with medical device manufacturing expectations.
Documentation assistance for pharmaceutical validation, including IQ, OQ and PQ protocols.
Two autoclaves of the same capacity can differ significantly in price. Here is a transparent breakdown of the factors that influence the quotation.
| Factor | How It Affects Price |
|---|---|
| Chamber Capacity | Ranges from 20 L to 200 L; larger vessels cost more |
| Steel Grade | SS 304 standard; SS 316 typically adds a 15–25% premium |
| Wall Construction | Double-walled PUF insulated bodies cost more than single-walled |
| Automation Level | PLC/HMI control with data logging adds significantly to the price |
| Safety Systems | Triple valve, interlock and low-water cut-off add to the base cost |
| Accessories | Additional baskets, trolleys, printers and data loggers |
| Certification & Documentation | ISI, CE and validation documentation may add a modest premium |
| Installation & Training | Site work, commissioning and operator training may be included or quoted separately |
GS Steem Industries is a professional Vertical Autoclave Manufacturer in Noida offering vertical autoclave manufacturing, supply, installation, testing and maintenance services. Our vertical autoclaves are used by hospitals, nursing homes, diagnostic laboratories, pharmaceutical companies, universities, research centres, veterinary clinics, food testing laboratories and industrial quality-control departments that depend on reliable steam sterilization.
As a trusted Vertical Autoclave Manufacturer in Noida, we recognise that sterilization requirements differ from one facility to another. Before recommending a model we consider chamber capacity, working pressure, sterilization temperature, material of construction, automation level, available floor space, power supply, water quality and the specific application the equipment will serve.
Noida is one of North India's most important healthcare, pharmaceutical and technology clusters, with a dense concentration of hospitals, diagnostic chains, formulation plants, engineering industries and university research departments. Our Vertical Autoclave Manufacturer in Noida services are structured to support these users with practical, dependable sterilization equipment. Depending on the project, vertical autoclaves can be configured with appropriate chamber capacities, stainless-steel construction, safety systems, pressure controls and automated operating features.
We also supply vertical autoclave solutions across Greater Noida, Noida Extension, Ghaziabad, Indirapuram, Dadri, Jewar, Delhi and the wider National Capital Region. Our team can assist with equipment selection, site readiness assessment, installation planning, commissioning, operator guidance, spare parts and after-sales maintenance support.
For hospitals, diagnostic laboratories, pharmaceutical units, educational institutions, veterinary centres and industrial testing laboratories, we can review your sterilization requirements and recommend a suitable vertical autoclave configuration. Equipment can be planned around required capacity, operating conditions, available space, automation level, safety requirements and application needs.
If your location is not listed above, you can still contact GS Steem Industries with your project location and sterilization requirements. We can discuss supply and installation possibilities across Uttar Pradesh, Delhi NCR and other major cities in India.
Contact GS Steem Industries for professional Vertical Autoclave Manufacturer in Noida services and discuss your requirements for vertical autoclave manufacturing, supply, installation, commissioning, operator training, spare parts and maintenance support.
Hospitals, laboratories and pharmaceutical units across Noida, Greater Noida and Delhi NCR rely on GS Enterprises for their sterilization equipment.
We installed a 75 L triple valve vertical autoclave in our diagnostic laboratory in Noida Sector 62. The steam quality is consistently good and the temperature hold is stable. Commissioning was handled smoothly and our technicians were trained on the spot.
We compared several vertical autoclave suppliers in Noida before choosing GS Enterprises. The quotation was clear with no hidden charges, delivery to Greater Noida was on schedule and support has been quick whenever we have raised a service request.
We ordered SS 316 fully automatic vertical autoclaves for our formulation unit in Noida Sector 63. The PLC control, batch printing and IQ/OQ documentation support made our internal qualification process straightforward. Well suited to pharmaceutical use.
Common questions about vertical autoclave supply, pricing, sizes and service support in Noida, Greater Noida and Delhi NCR.
GS Enterprises is among the most trusted vertical autoclave manufacturers serving Noida and Greater Noida. We build ISI and CE certified vertical steam sterilizers in capacities from 20 litres to 200 litres, including semi-automatic, fully automatic and triple valve models for hospitals, pathology laboratories, pharmaceutical plants and research institutes.
A vertical autoclave in Noida typically starts around ₹48,000 for a 20–25 litre semi-automatic model and can go up to ₹4,75,000 for a 150–200 litre fully automatic triple valve unit. Final pricing depends on chamber capacity, SS 304 or SS 316 construction, automation level, safety features, accessories and customisation.
Yes. We regularly supply, deliver and commission vertical autoclaves across Noida Sector 62, 63, 58, 59, 57, 10, 12, 18, 27, 126, 128, 132, 137, 142, 143 and 168, as well as Greater Noida, Noida Extension, Greater Noida West, Dadri, Ghaziabad, Indirapuram and the wider Delhi NCR region. Installation and operator training are included.
We offer vertical autoclaves in standard capacities of 20 L, 25 L, 35 L, 50 L, 75 L, 100 L, 150 L and 200 litres. Non-standard chamber sizes, double-walled PUF insulated bodies and SS 316 pharmaceutical-grade constructions are also manufactured on request.
Yes. For pharmaceutical and cleanroom applications we recommend SS 316 fully automatic vertical autoclaves with PLC/HMI control, cycle data logging, batch printing and validation documentation. These units support GMP requirements and are widely used by pharma units in Noida Sector 63, 64, 67 and 80.
A complete cycle usually takes 30 to 60 minutes, covering heat-up, the sterilization hold and cooling. The exact duration depends on chamber capacity, the type and density of the load, and whether you are running at 121°C or 134°C.
Absolutely. Our manufacturing facility is equipped to build custom vertical autoclaves with non-standard chamber sizes, higher pressure ratings, special baskets or trolleys, alternative voltage configurations and advanced PLC automation. Share your requirement with our team for a tailored quotation.
Every vertical autoclave comes with a 12-month warranty against manufacturing defects. We provide free installation and commissioning, operator training, genuine spare parts and prompt service support across Noida, Greater Noida and Delhi NCR.
